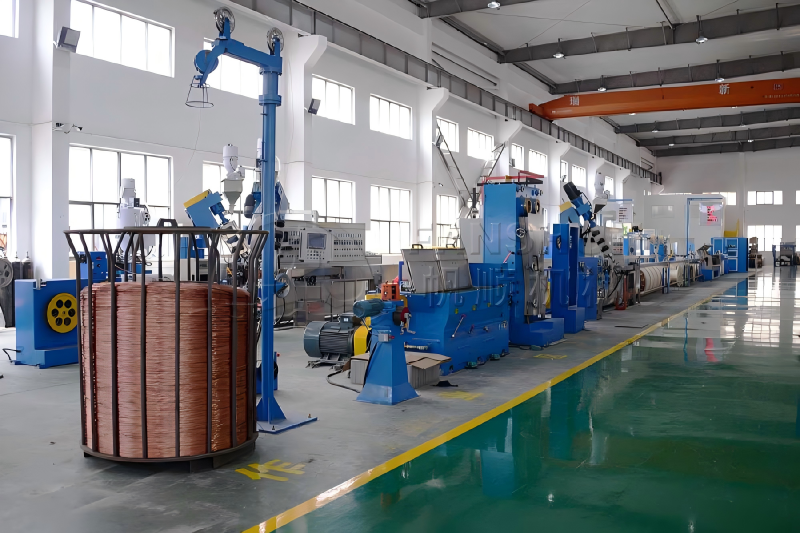

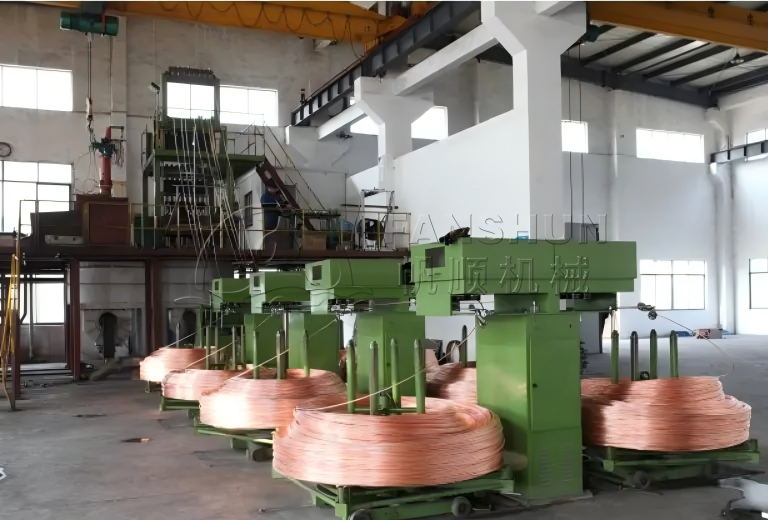

The copper wire and cable production line is an integrated automated manufacturing system designed for processing copper conductors and forming cables. It covers key processes such as wire drawing, annealing, stranding, insulation extrusion, and cabling, enabling continuous production from copper rod to finished cable.
The production line features a modular design and supports high-speed, high-precision operation, meeting the manufacturing needs of various wire and cable specifications.
Equipped with a PLC-based centralized control system, the line enables automatic tension control, online monitoring, and closed-loop adjustment, ensuring consistent quality and improved efficiency.
Compatible with high-purity copper (≥99.9%), ensuring low electrical resistance and stable conductivity, suitable for power and electronic applications.
Combines wire drawing machines, annealing units, stranding machines, and extrusion systems into one complete production line, minimizing intermediate losses.
Supports a wide range of cable types, including single-core, multi-core, and flexible cables, with customizable configurations.
Adopts energy-saving drive systems and efficient heating technologies, reducing energy consumption and supporting the use of recycled copper materials.
| Item | Specification |
| Conductor Type | Copper wire (Φ0.15–5.0 mm) |
| Production Speed | 300–1200 m/min |
| Drawing Passes | 8–24 passes |
| Annealing Type | Continuous online annealing |
| Stranding Type | Single twist / bunching / concentric |
| Extrusion Capacity | 50–200 kg/h |
| Voltage Rating | 300V–35kV |
| Control System | PLC + Touchscreen |
| Temperature Accuracy | ±1°C |
| Total Power | 100–500 kW |
(Specifications can be customized based on customer requirements)
Copper wire and cables are widely used across various industries due to their excellent conductivity and reliability:
Power transmission and distribution systems
Building electrical installations and infrastructure
Renewable energy (wind, solar, electric vehicles)
Industrial automation equipment
Telecommunications and data centers
Standard warranty period: 12 months
Remote technical support and on-site commissioning
Regular inspection of wire drawing dies for wear
Maintain stable annealing temperature to prevent oxidation
Periodic lubrication of transmission systems
Check temperature control system of extrusion equipment
Operator training and technical guidance
Spare parts supply
Equipment upgrades and production line optimization
Equipment Configuration Reference
Cold rolling mill

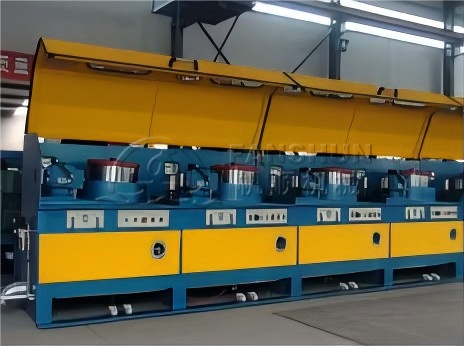

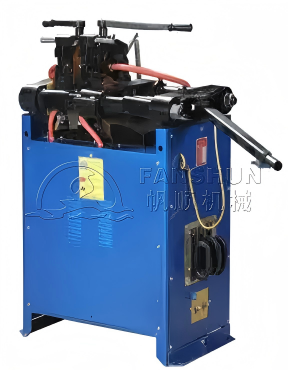

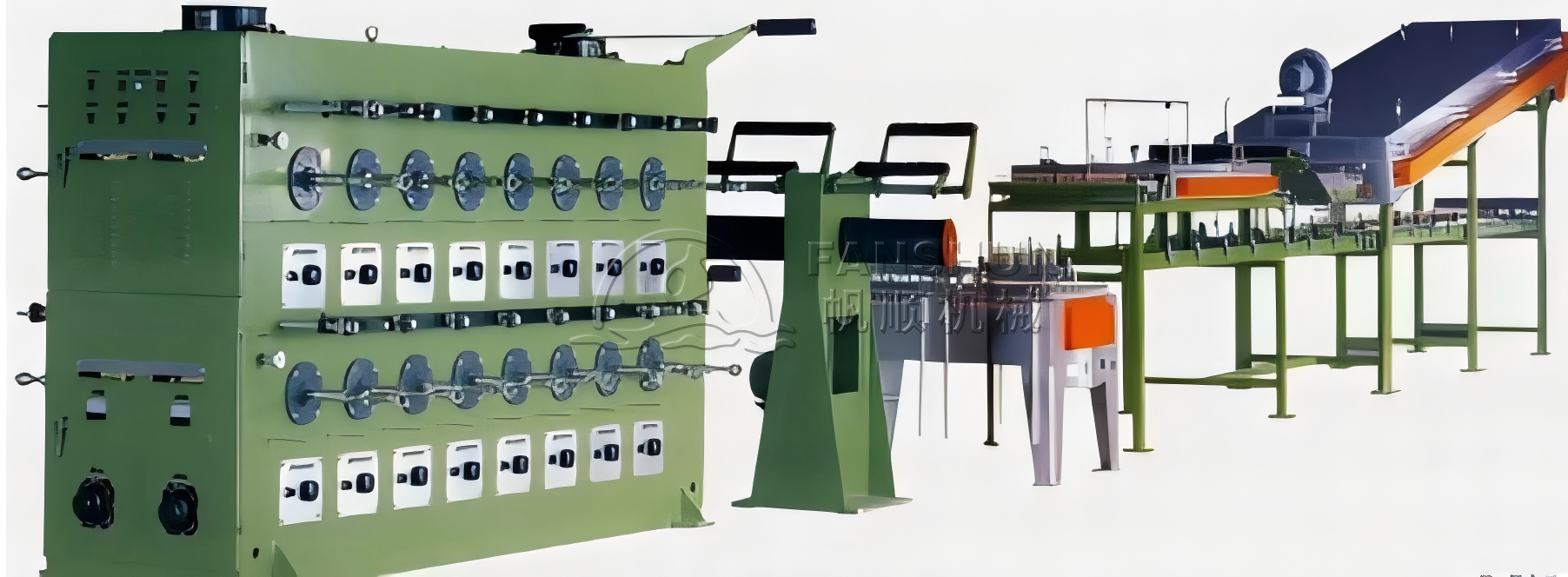

Simply drawing machine Butt welder

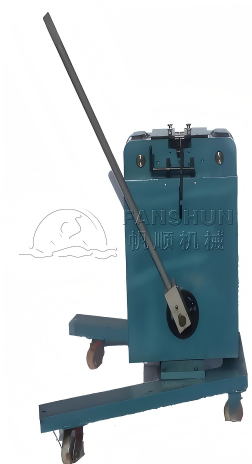

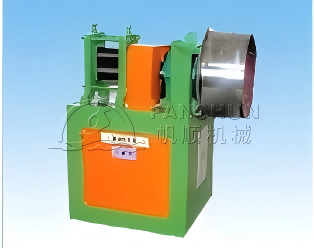

Cold extrusion welding machine Pointing Machine

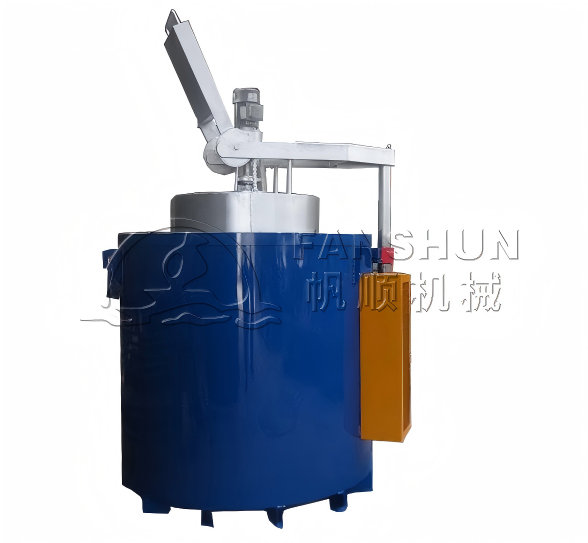

Annealing Furnace + Paint Coater

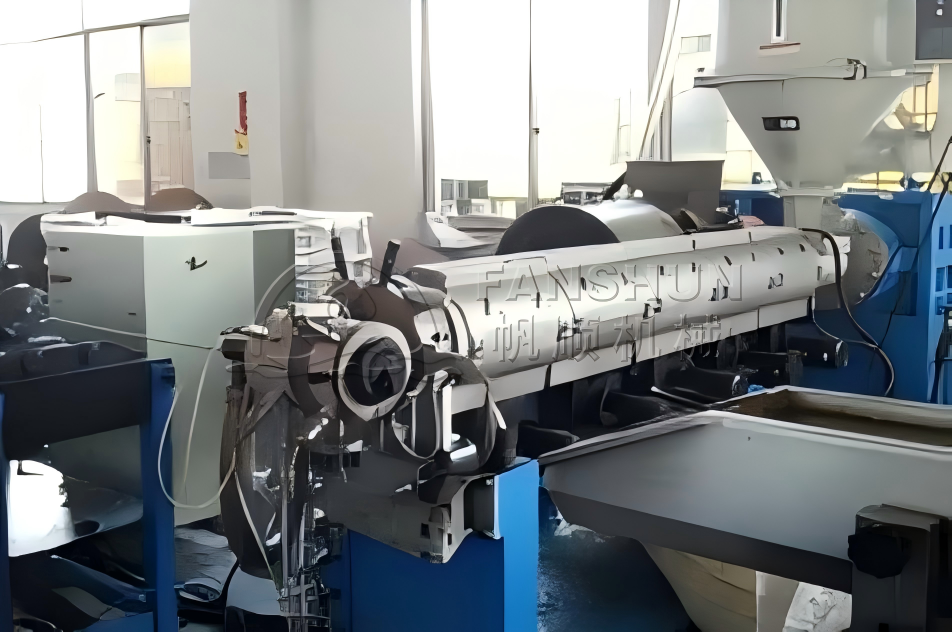

Copper wire winding machine Wire Extruder
