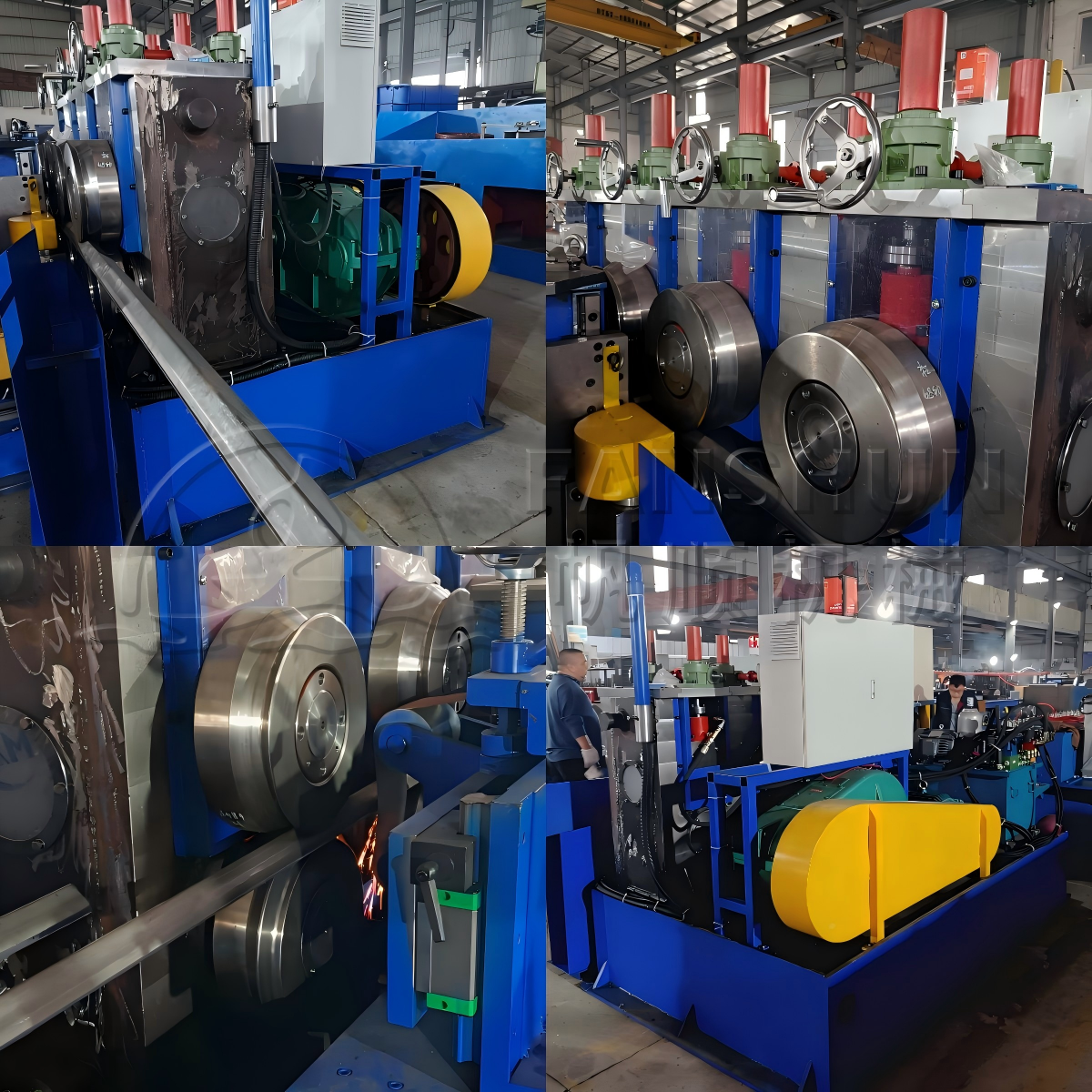

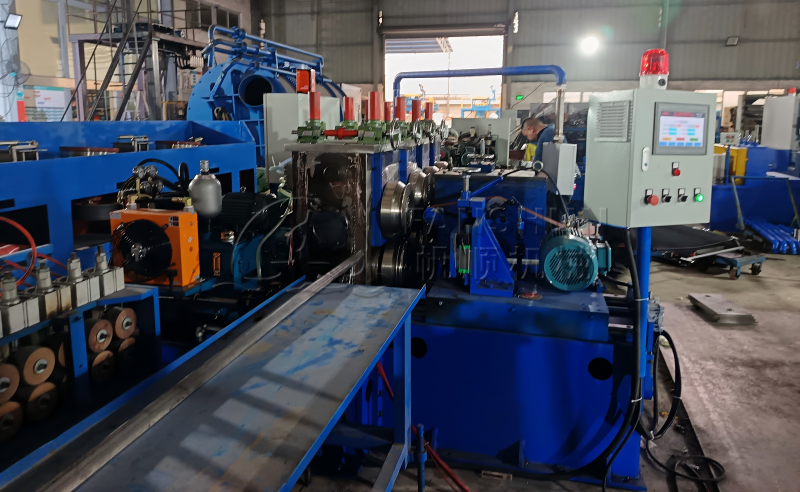

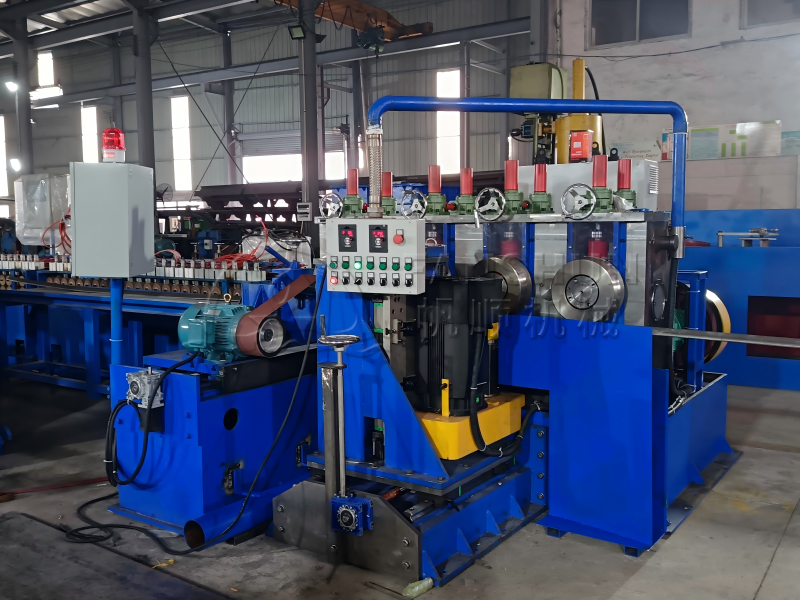

This machine is an integrated edge milling system designed for processing the edges of non-ferrous and ferrous metal profiles, including copper, aluminum, and steel.
It combines a roller feeding mechanism with a hydraulic pressure holding system to ensure stable material transport and precise edge milling performance.
The dual-end support structure allows for continuous processing of long workpieces, making it ideal for high-efficiency and batch production environments.
Continuous Feeding System
Equipped with multiple pressure rollers and support racks, enabling unlimited workpiece length and continuous operation
Hydraulic Pressure Holding System
Integrated hydraulic station with nitrogen-assisted pressure holding ensures stable operation during processing
Variable Frequency Speed Control
Both feeding motor and milling motor are inverter-controlled for adjustable processing speed
Multi-Point Roller Adjustment
Five sets of upper pressure rollers can be independently adjusted to accommodate different material sizes
Robust and Durable Structure
High-quality bearings and gearbox system ensure long-term stable performance
Built-in Lubrication System
Automatic lubrication inside the spindle box reduces wear and extends service life
| Main Drive Motor | 11 kW (4 poles) |
| Milling Cutter Motor | 11 kW (2 poles) |
| Oil Pump Power | 4 kW |
| Total Power | Approx. 26 kW |
| Feeding Speed | 0–20 m/min (variable frequency adjustable) |
| Gearbox | Model 500 (Ratio 1:48.57) |
| Hydraulic Cylinders | 10 sets (70×3) |
| Lifting Adjusters | 10 sets (WPT50-10) |
| Milling Cutter Disc | Ø160 reverse type |
| Main Bearings Configuration |
|
| Hydraulic System | Pressure holding station (with nitrogen system) |
| Power Supply | 3-phase, 4-wire, 380V |
Metal profile processing (copper, aluminum, steel)
Edge milling for irregular-shaped materials

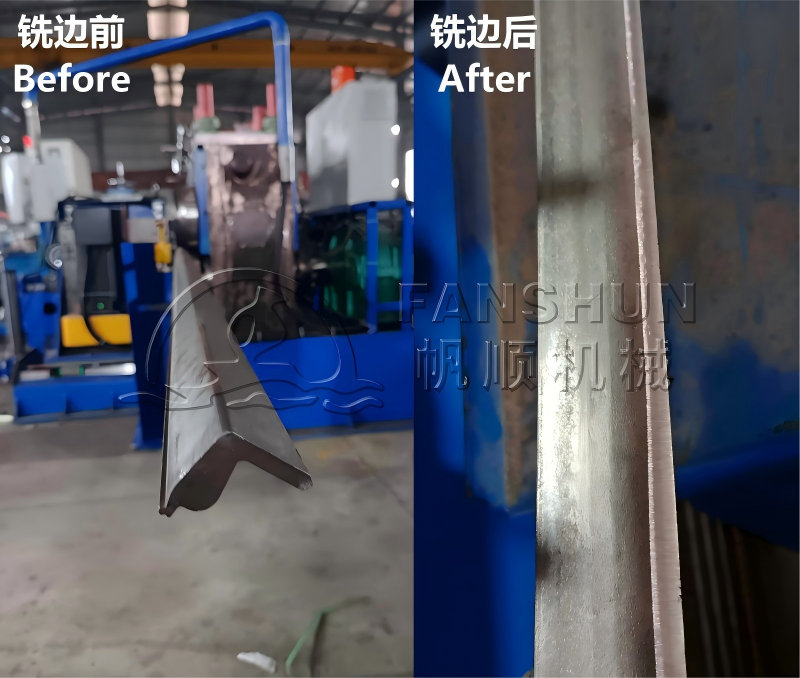

Pre-welding edge preparation
Hardware and metal fabrication industries
Continuous production lines
Install on a solid concrete foundation and ensure proper leveling
Power cable ≥ 16 mm², circuit breaker ≥ 100A
Use 68# hydraulic oil and fill according to oil gauge level
Ensure gearbox is properly lubricated with oil and grease
Verify motor rotation direction and hydraulic system before startup
Recommended hydraulic pressure: 110–120 kg
Adjust pressure rollers according to material thickness
Feeding speed adjustable from 0–20 m/min
Secure milling cutter position (height and depth) before operation
Press emergency stop immediately in case of abnormal operation
Do not operate under faulty conditions
Always power off before maintenance
12-month warranty for the complete machine (excluding consumable parts)
Regularly inspect rollers and cutting tools for wear
Keep guide rails and moving parts clean
Check hydraulic oil and lubrication system periodically
Stop the machine immediately if abnormal vibration or noise occurs
Check hydraulic system for pressure or oil issues
Repairs should be performed by qualified technicians
